Introduction

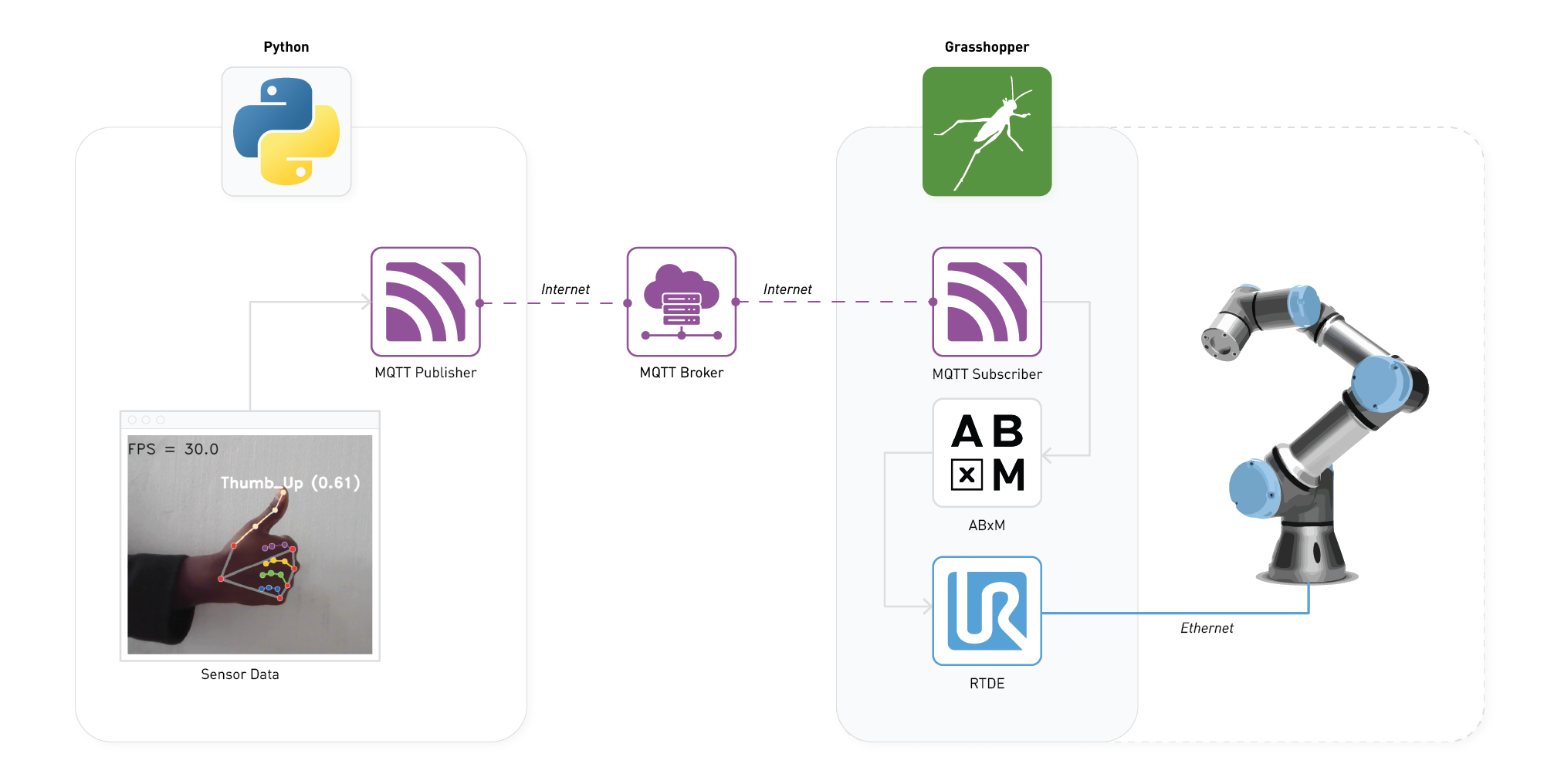

We will be using MQTT to send the results of the sensor to Grasshopper. The following diagram shows the overall workflow.

Workflow of MQTT and Grasshopper

  • MQTT is a lightweight messaging protocol that is used to send messages between devices.
  • MQTT is a publish-subscribe based messaging protocol.
  • MQTT is similar to ROS in the sense that it is used to send messages between devices.

Workflow (Source: Twilio)

Keywords​

  • Broker: A server that receives all messages from the clients and then routes the messages to the appropriate destination clients.
  • Client: A device that connects to the broker.
  • Publisher: A client that sends messages to the broker.
  • Subscriber: A client that receives messages from the broker.
  • Topic: A string that the broker uses to filter messages for each connected client.
  • QoS (Quality of Service): The level of guarantee that a message will be delivered. There are three levels of QoS: 0, 1, and 2. QoS 0 is the fastest but least reliable, while QoS 2 is the slowest but most reliable.

For more information about MQTT, here is a Youtube Playlist the explains more the basics.

MQTT Playlist
